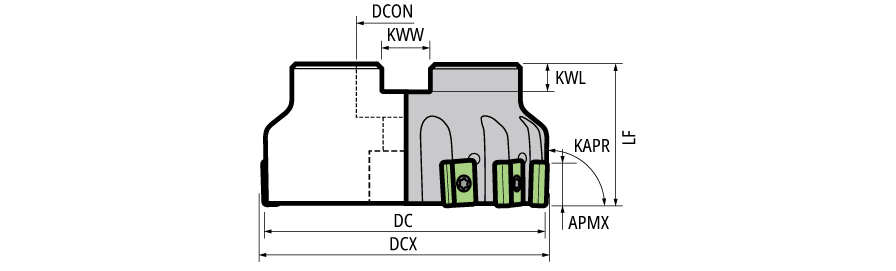

| Cutting Diameter (DC/DCX) | 4.921″ | Body Material | Steel |
| Cutting Diameter (DC) | 4.921″ | Application | | For Cast Iron material | |
| Cutting Diameter Maximum (DCX) | 5.039″ | Measurement Type | Inch |
| Cutting Item Count (CICT) | 16″ | Functional Length (LF) | 2.283″ |
| Depth of Cut Maximum (APMX) | -0.3149″ | Tool Cutting Edge Angle (KAPR) | 88 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Unit | I |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | JXTM-88 Arbor type cutter |
Shipping Info
Weight per item
6.8343
Name
Indexable Face Mills
FamilyName
JXTM-88 Arbor type cutter
BrandName
NTK Cutting Tools
