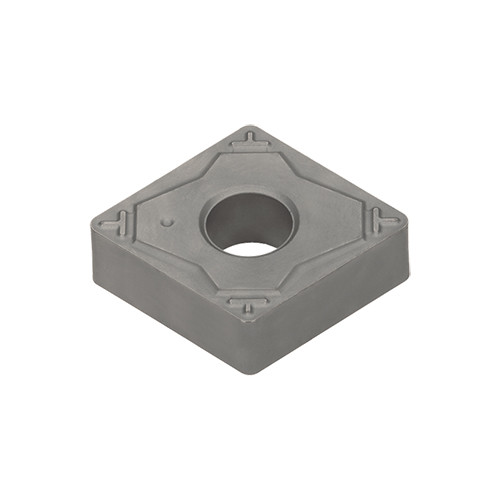

CNMG 430.5 TF T6215

Negative relief ang., M class, 80deg rhombic insert, for precision finishing

Item # TUN6965720

Brand: Tungaloy

Mfr#: 6965720

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Steel | Stainless Steel |

Tool Type

Turn Negative Inserts

Application

| Inserts |

Min D.O.C.

0.0039″

Corner Radius (RE)

0.0079″

Depth of Cut Maximum (APMX)

0.0197″

Cutting Edge Length (L)

0.508″

Min. Turning Feed (ft(min))

0.0012 ″/rev

Insert Thickness (S)

0.187″

Max. Turning Feed (ft(max))

0.0039 ″/rev

Inscribed Circle Diameter (IC)

1/2″

Cutting Direction (HAND)

Neutral

Cutting Edge Material

Carbide

Chip Breaker Type

Coating

TiCN+Al2O3+TiN

Measurement Type

Inch

Grade

T6215

Body Material

Carbide

Fixing Hole Diameter (D1)

0.203″

Unit

Product Features

Family Description

Negative relief ang., M class, 80deg rhombic insert, for precision finishing

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

CNMG-TF

Shipping Info

Weight per item

0.0000

Name

Turning Indexable Inserts
