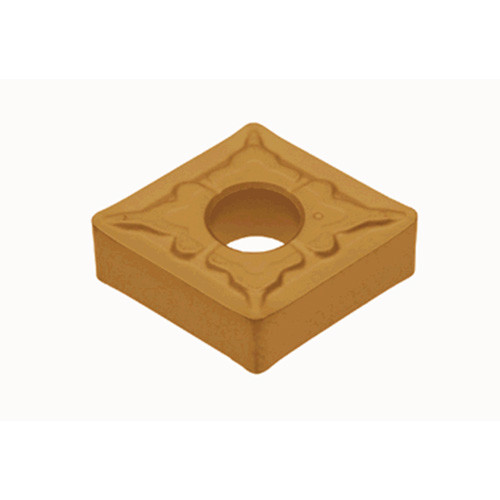

CNMG 430.5 TS AH6225

Name: CNMG 430.5 TS AH6225
Brand: TungTurn
SKU: TUN6965742
Price: 16.40 USD
Availability: InStock

Negative relief ang., M class, 80deg rhombic insert, for finishing

Item # TUN6965742

Brand: Tungaloy

Mfr#: 6965742

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Applicable Material

| Steel | Stainless Steel |

Tool Type

Turn Negative Inserts

Application

| Inserts |

Min D.O.C.

0.0079″

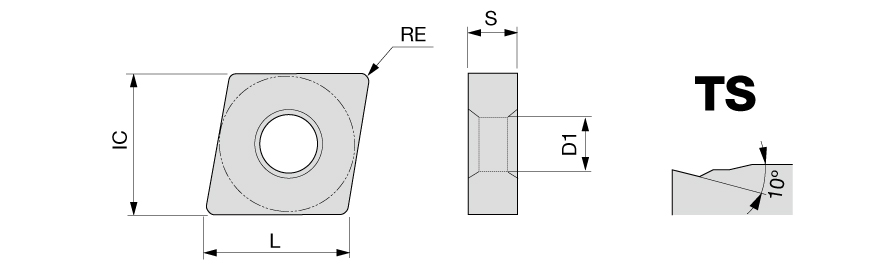

Corner Radius (RE)

0.0079″

Depth of Cut Maximum (APMX)

0.059″

Cutting Edge Length (L)

0.508″

Min. Turning Feed (ft(min))

0.0012 ″/rev

Insert Thickness (S)

0.187″

Max. Turning Feed (ft(max))

0.0039 ″/rev

Inscribed Circle Diameter (IC)

1/2″

Cutting Direction (HAND)

Neutral

Cutting Edge Material

Carbide

Chip Breaker Type

Coating

TiAlN

Measurement Type

Inch

Grade

AH6225

Body Material

Carbide

Fixing Hole Diameter (D1)

0.203″

Unit

Product Features

Family Description

Negative relief ang., M class, 80deg rhombic insert, for finishing

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

FamilyName

CNMG-TS

Shipping Info

Weight per item

0.0000

Name

Turning Indexable Inserts
