MCTRCH08.50XM20-25

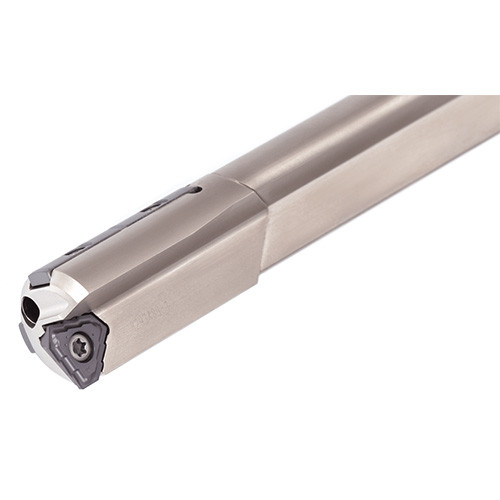

Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers

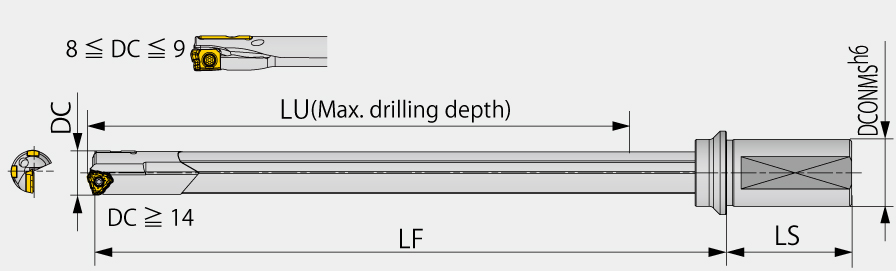

| Cutting Diameter (DC) | 8.5 mm | Cutting Diameter Minimum (DCN) | 8.5 mm |
| Usable Length (LU) | 218.7 mm | Cutting Diameter Maximum (DCX) | 8.5 mm |
| Application | | General Drilling | | Point Length (PL) | 1.2 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | ZSGT04... |
| Shank Length (LS) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 242.5 mm | Unit | M |
| Overall Length (OAL) | 293.5 mm |
Product Features
| Family Description | Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers | COO | JAPAN |

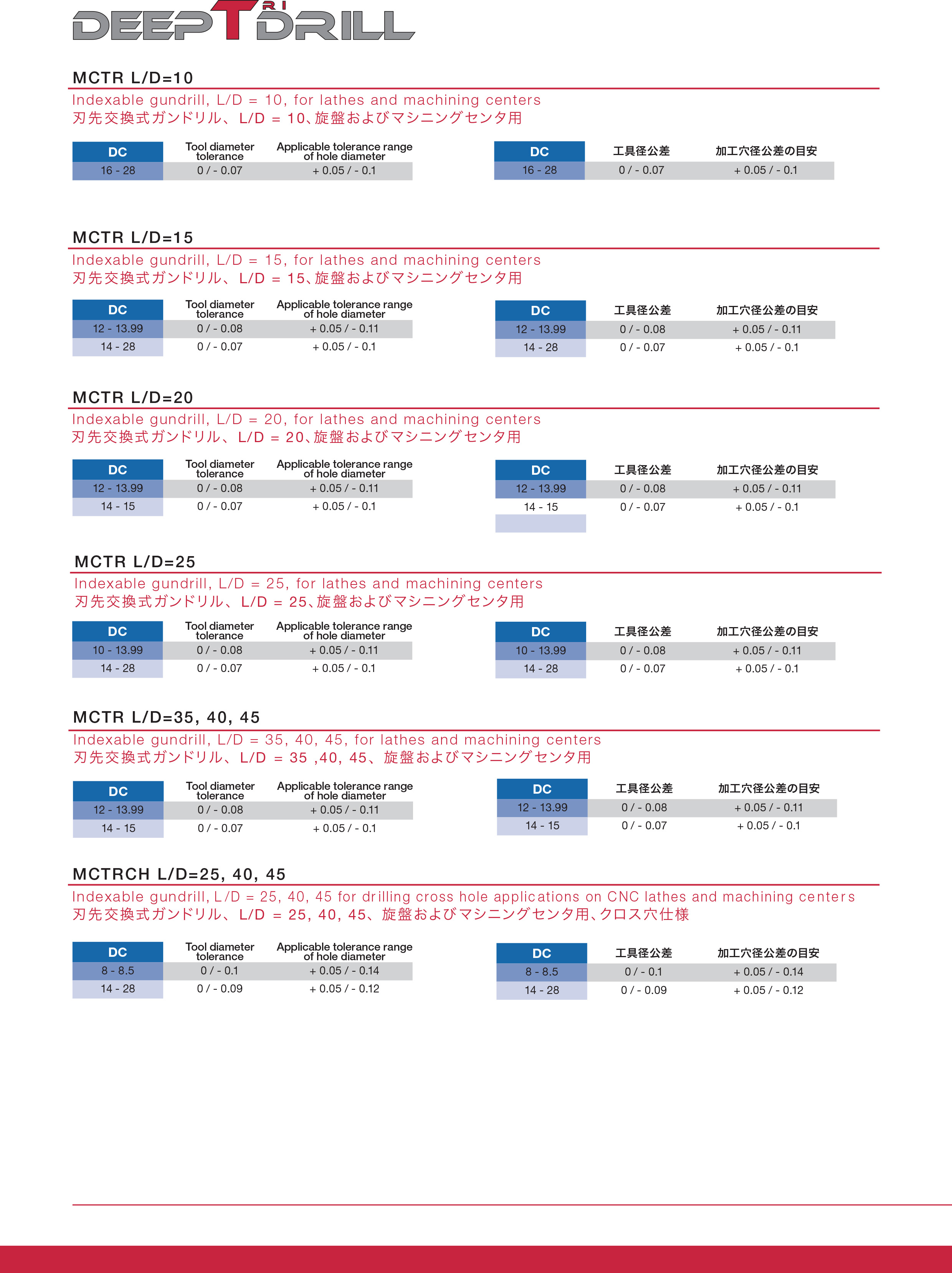

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the Product Report. |
Shipping Info
Weight per item
0.2620
