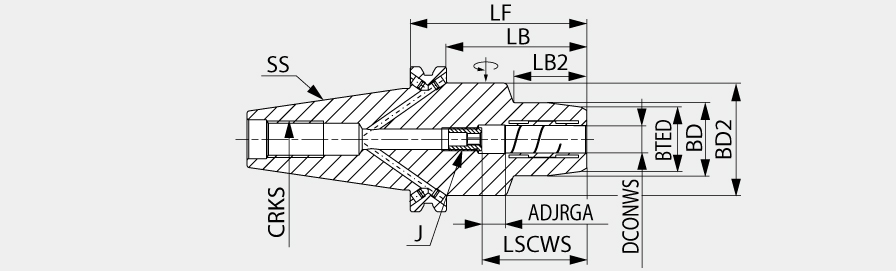

| Body Length (LB) | 1-3/4″ | Shank Size (SS) | 40 |
| Body Length_2 (LB_2) | 1.102″ | Application | | Tapered shape interface | |
| Thread Designation Inside (THID) | M5 | Measurement Type | Inch |
| Body Diameter (BD) | 1.181″ | Body Taper End Diameter (BTED) | 0.945 |
| Body Diameter_2 (BD_2) | 1.929″ | Body Material | Steel |
| Overall Length (OAL) | 2-1/2″ | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 1.614″ |
Product Features

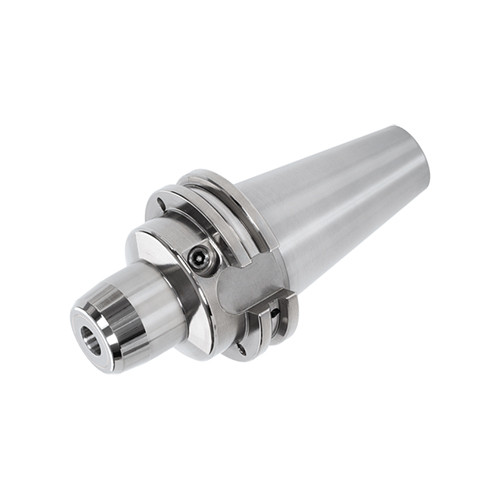

| Family Description | CAT Integrated Holder High Precision Hydraulic Chuck | FamilyName | CAT-HYDRO-T |
| Remarks | Wrench is not included. Please order separately. Tool shank tolerance: h6 Balanced to G2.5, max n: 25,000 min 1 | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.0000
Name
Hydraulic Holders
FamilyName
CAT-HYDRO-T
BrandName
Tungaloy
